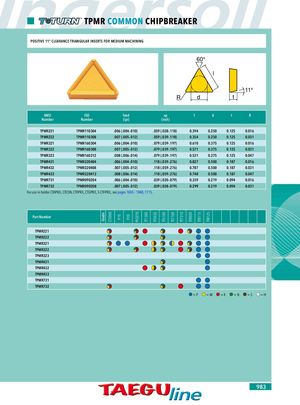

TPMR COMMON CHIPBREAKER POSITIVE 11° CLEARANCE TRIANGULAR INSERTS FOR MEDIUM MACHINING 60° l 11° R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TPMR221 TPMR110304 .006 (.004-.010) .059 (.028-.118) 0.394 0.250 0.125 0.016 TPMR222 TPMR110308 .007 (.005-.012) .059 (.039-.118) 0.354 0.250 0.125 0.031 TPMR321 TPMR160304 .006 (.004-.010) .079 (.039-.197) 0.610 0.375 0.125 0.016 TPMR322 TPMR160308 .007 (.005-.012) .079 (.039-.197) 0.571 0.375 0.125 0.031 TPMR323 TPMR160312 .008 (.006-.014) .079 (.039-.197) 0.531 0.375 0.125 0.047 TPMR431 TPMR220404 .006 (.004-.010) .118 (.039-.276) 0.827 0.500 0.187 0.016 TPMR432 TPMR220408 .007 (.005-.012) .118 (.059-.276) 0.787 0.500 0.187 0.031 TPMR433 TPMR220412 .008 (.006-.014) .118 (.059-.276) 0.748 0.500 0.187 0.047 TPMR731 TPMR090204 .006 (.004-.010) .039 (.020-.079) 0.339 0.219 0.094 0.016 TPMR732 TPMR090208 .007 (.005-.012) .039 (.028-.079) 0.299 0.219 0.094 0.031 For use in holder CTAPR/L, CTCON, CTFPR/L, CTGPR/L, S-CTFPR/L, see pages 1045 - 1048, 1115. Part Number TPMR221 TPMR222 TPMR321 TPMR322 TPMR323 TPMR431 TPMR432 TPMR433 TPMR731 TPMR732 =P =M =K =N =S =H 983 Grade CT3000 P10 P20 PV3010 TT1300 TT5030 TT5100 TT7100 TT7310 TT8020 TT8115 TT8125
