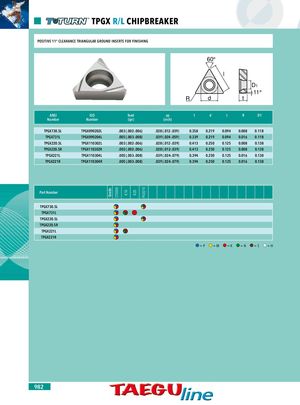

Grade CT3000 K10 K20 PV3010 TPGX R/L CHIPBREAKER POSITIVE 11° CLEARANCE TRIANGULAR GROUND INSERTS FOR FINISHING 60° l D1 11° R d t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) TPGX730.5L TPGX090202L .003 (.002-.006) .028 (.012-.039) 0.358 0.219 0.094 0.008 0.118 TPGX731L TPGX090204L .005 (.003-.008) .039 (.024-.059) 0.339 0.219 0.094 0.016 0.118 TPGX220.5L TPGX110302L .003 (.002-.006) .028 (.012-.039) 0.413 0.250 0.125 0.008 0.138 TPGX220.5R TPGX110302R .003 (.002-.006) .028 (.012-.039) 0.413 0.250 0.125 0.008 0.138 TPGX221L TPGX110304L .005 (.003-.008) .039 (.024-.079) 0.394 0.250 0.125 0.016 0.138 TPGX221R TPGX110304R .005 (.003-.008) .039 (.024-.079) 0.394 0.250 0.125 0.016 0.138 Part Number TPGX730.5L TPGX731L TPGX220.5L TPGX220.5R TPGX221L TPGX221R =P =M =K =N =S =H 982
