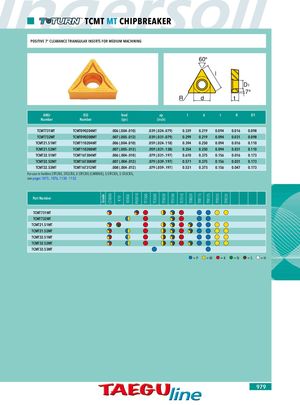

Grade CT3000 K10 KT450 PV3010 TT1300 TT3500 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9225 TT9235 TCMT MT CHIPBREAKER POSITIVE 7° CLEARANCE TRIANGULAR INSERTS FOR MEDIUM MACHINING 60° l D1 7° R d t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) TCMT731MT TCMT090204MT .006 (.004-.010) .039 (.024-.079) 0.339 0.219 0.094 0.016 0.098 TCMT732MT TCMT090208MT .007 (.005-.012) .039 (.031-.079) 0.299 0.219 0.094 0.031 0.098 TCMT21.51MT TCMT110204MT .006 (.004-.010) .059 (.024-.118) 0.394 0.250 0.094 0.016 0.110 TCMT21.52MT TCMT110208MT .007 (.005-.012) .059 (.031-.138) 0.354 0.250 0.094 0.031 0.110 TCMT32.51MT TCMT16T304MT .006 (.004-.010) .079 (.031-.197) 0.610 0.375 0.156 0.016 0.173 TCMT32.52MT TCMT16T308MT .007 (.004-.012) .079 (.039-.197) 0.571 0.375 0.156 0.031 0.173 TCMT32.53MT TCMT16T312MT .008 (.004-.012) .079 (.059-.197) 0.531 0.375 0.156 0.047 0.173 For use in holders STFCR/L, STGCR/L, E-STFCR/L (CARBIDE), S-STFCR/L, S-STUCR/L, see pages 1075 , 1076, 1130 - 1132. Part Number TCMT731MT TCMT732MT TCMT21.51MT TCMT21.52MT TCMT32.51MT TCMT32.52MT TCMT32.53MT =P =M =K =N =S =H 979
