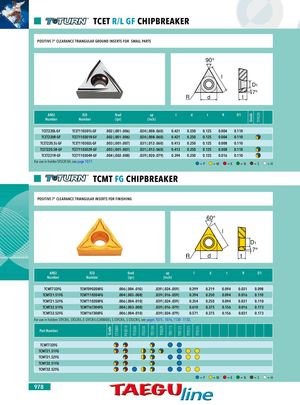

Grade CT3000 PV3010 TT3500 TT5030 TT5100 TT8020 TT8115 TT8125 TT9225 TT9235 Grade TT9020 TCET R/L GF CHIPBREAKER POSITIVE 7° CLEARANCE TRIANGULAR GROUND INSERTS FOR SMALL PARTS 90° l D1 7° R d t ANASINSI ISO ISO feed feed ap ap l d l t d R t D1 R D1 NuNmubmerber NumbeNrumber (ipr) (ipr) (inch) (inch) TCET220L-GF TCET110301L-GF .002 (.001-.006) .024 (.008-.060) 0.421 0.250 0.125 0.004 0.110 TCET220R-GF TCET110301R-GF .002 (.001-.006) .024 (.008-.060) 0.421 0.250 0.125 0.004 0.110 TCET220.5L-GF TCET110302L-GF .003 (.001-.007) .031 (.012-.060) 0.413 0.250 0.125 0.008 0.110 TCET220.5R-GF TCET110302R-GF .003 (.001-.007) .031 (.012-.060) 0.413 0.250 0.125 0.008 0.110 TCET221R-GF TCET110304R-GF .004 (.002-.008) .039 (.020-.079) 0.394 0.250 0.125 0.016 0.110 For use in holder STGCR-SH, see page 1077. =P =M =K =N =S =H TCMT FG CHIPBREAKER POSITIVE 7° CLEARANCE TRIANGULAR INSERTS FOR FINISHING 60° l D1 7° R d t ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) TCMT732FG TCMT090208FG .006 (.004-.010) .039 (.024-.059) 0.299 0.219 0.094 0.031 0.098 TCMT21.51FG TCMT110204FG .004 (.003-.008) .039 (.016-.059) 0.394 0.250 0.094 0.016 0.110 TCMT21.52FG TCMT110208FG .006 (.004-.010) .039 (.024-.059) 0.354 0.250 0.094 0.031 0.110 TCMT32.51FG TCMT16T304FG .004 (.003-.008) .039 (.016-.079) 0.610 0.375 0.156 0.016 0.173 TCMT32.52FG TCMT16T308FG .006 (.004-.010) .039 (.024-.079) 0.571 0.375 0.156 0.031 0.173 For use in holders STFCR/L, STGCR/L, E-STFCR/L (CARBIDE), S-STFCR/L, S-STUCR/L, see pages 1075 , 1076, 1130 - 1132. Part Number TCMT732FG TCMT21.51FG TCMT21.52FG TCMT32.51FG TCMT32.52FG =P =M =K =N =S =H 978
