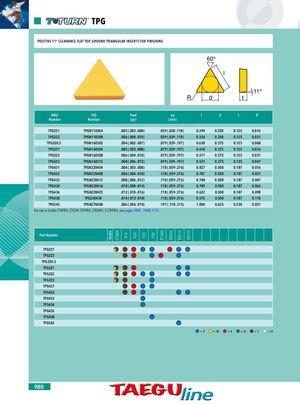

TPG POSITIVE 11° CLEARANCE FLAT TOP, GROUND TRIANGULAR INSERTS FOR FINISHING 60° l 11° R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TPG221 TPGN110304 .005 (.003-.008) .059 (.028-.118) 0.394 0.250 0.125 0.016 TPG222 TPGN110308 .006 (.004-.010) .059 (.039-.118) 0.354 0.250 0.125 0.031 TPG320.5 TPGN160302 .004 (.002-.007) .079 (.039-.197) 0.630 0.375 0.125 0.008 TPG321 TPGN160304 .005 (.003-.008) .079 (.039-.197) 0.610 0.375 0.125 0.016 TPG322 TPGN160308 .006 (.004-.010) .079 (.039-.197) 0.571 0.375 0.125 0.031 TPG323 TPGN160312 .008 (.006-.012) .079 (.039-.197) 0.531 0.375 0.125 0.047 TPG431 TPGN220404 .004 (.003-.008) .118 (.059-.276) 0.827 0.500 0.187 0.016 TPG432 TPGN220408 .006 (.004-.010) .118 (.059-.276) 0.787 0.500 0.187 0.031 TPG433 TPGN220412 .008 (.006-.012) .118 (.059-.276) 0.748 0.500 0.187 0.047 TPG434 TPGN220416 .010 (.008-.014) .118 (.059-.276) 0.709 0.500 0.187 0.063 TPG436 TPGN220425 .012 (.010-.016) .118 (.059-.276) 0.622 0.500 0.187 0.098 TPG438 TPG220430 .014 (.012-.018) .118 (.059-.276) 0.575 0.500 0.187 0.118 TPG542 TPGN270608 .006 (.006-.010) .197 (.118-.315) 1.004 0.625 0.250 0.031 For use in holder CTAPR/L, CTCON, CTFPR/L, CTGPR/L, S-CTFPR/L, see pages 1045 - 1048, 1115. Part Number TPG221 TPG222 TPG320.5 TPG321 TPG322 TPG323 TPG431 TPG432 TPG433 TPG434 TPG436 TPG438 TPG542 =P =M =K =N =S =H 980 Grade CT3000 K10 K20 P20 P30 TT1300 TT6030 TT8115 TT8125
