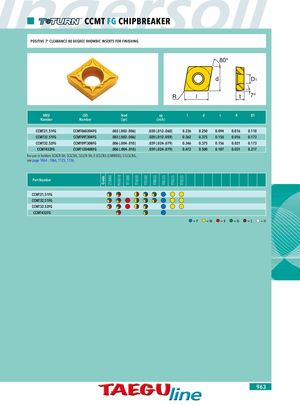

Grade CT3000 PV3010 TT1300 TT5030 TT5100 TT8020 TT8125 TT9225 TT9235 CCMT FG CHIPBREAKER POSITIVE 7° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR FINISHING 80° d D1 R l t 7° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) CCMT21.51FG CCMT060204FG .003 (.002-.006) .020 (.012-.060) 0.236 0.250 0.094 0.016 0.110 CCMT32.51FG CCMT09T304FG .003 (.002-.006) .020 (.012-.059) 0.362 0.375 0.156 0.016 0.173 CCMT32.52FG CCMT09T308FG .006 (.004-.010) .039 (.024-.079) 0.346 0.375 0.156 0.031 0.173 CCMT432FG CCMT120408FG .006 (.004-.010) .039 (.024-.079) 0.472 0.500 0.187 0.031 0.217 For use in holders SCACR-SH, SCLCR/L, SCLCR-SH, E-SCLCR/L (CARBIDE), S-SCLCR/L, see page 1064 - 1066, 1125, 1126. Part Number CCMT21.51FG CCMT32.51FG CCMT32.52FG CCMT432FG =P =M =K =N =S =H 963
