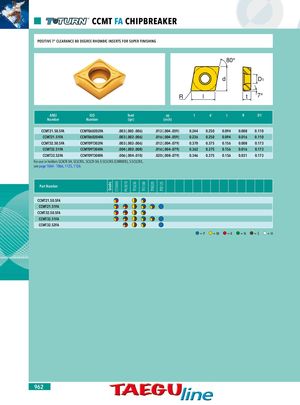

Grade CT3000 PV3010 TT5030 TT5100 TT8020 TT8125 CCMT FA CHIPBREAKER POSITIVE 7° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR SUPER FINISHING 80° d D1 R l t 7° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) CCMT21.50.5FA CCMT060202FA .003 (.002-.006) .012 (.004-.059) 0.244 0.250 0.094 0.008 0.110 CCMT21.51FA CCMT060204FA .003 (.002-.006) .016 (.004-.059) 0.236 0.250 0.094 0.016 0.110 CCMT32.50.5FA CCMT09T302FA .003 (.002-.006) .012 (.004-.079) 0.370 0.375 0.156 0.008 0.173 CCMT32.51FA CCMT09T304FA .004 (.002-.008) .016 (.004-.079) 0.362 0.375 0.156 0.016 0.173 CCMT32.52FA CCMT09T308FA .006 (.004-.010) .020 (.008-.079) 0.346 0.375 0.156 0.031 0.173 For use in holders SCACR-SH, SCLCR/L, SCLCR-SH, E-SCLCR/L (CARBIDE), S-SCLCR/L, see page 1064 - 1066, 1125, 1126. Part Number CCMT21.50.5FA CCMT21.51FA CCMT32.50.5FA CCMT32.51FA CCMT32.52FA =P =M =K =N =S =H 962
