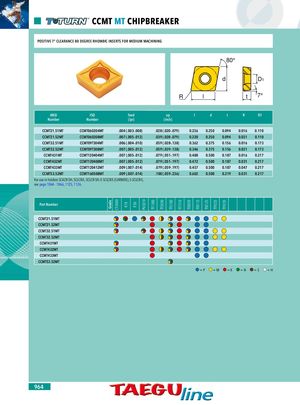

Grade CT3000 K10 P30 PV3010 TT1300 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9225 TT9235 CCMT MT CHIPBREAKER POSITIVE 7° CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING 80° d D1 R l t 7° ANSI ISO feed ap l d t R D1 Number Number (ipr) (inch) CCMT21.51MT CCMT060204MT .004 (.003-.008) .028 (.020-.079) 0.236 0.250 0.094 0.016 0.110 CCMT21.52MT CCMT060208MT .007 (.005-.012) .039 (.028-.079) 0.220 0.250 0.094 0.031 0.110 CCMT32.51MT CCMT09T304MT .006 (.004-.010) .059 (.028-.138) 0.362 0.375 0.156 0.016 0.173 CCMT32.52MT CCMT09T308MT .007 (.005-.012) .059 (.039-.138) 0.346 0.375 0.156 0.031 0.173 CCMT431MT CCMT120404MT .007 (.005-.012) .079 (.051-.197) 0.488 0.500 0.187 0.016 0.217 CCMT432MT CCMT120408MT .007 (.005-.012) .079 (.051-.197) 0.472 0.500 0.187 0.031 0.217 CCMT433MT CCMT120412MT .009 (.007-.014) .079 (.059-.197) 0.457 0.500 0.187 0.047 0.217 CCMT53.52MT CCMT160508MT .009 (.007-.014) .100 (.059-.236) 0.602 0.500 0.219 0.031 0.217 For use in holders SCACR-SH, SCLCR/L, SCLCR-SH, E-SCLCR/L (CARBIDE), S-SCLCR/L, see page 1064 - 1066, 1125, 1126. Part Number CCMT21.51MT CCMT21.52MT CCMT32.51MT CCMT32.52MT CCMT431MT CCMT432MT CCMT433MT CCMT53.52MT =P =M =K =N =S =H 964
