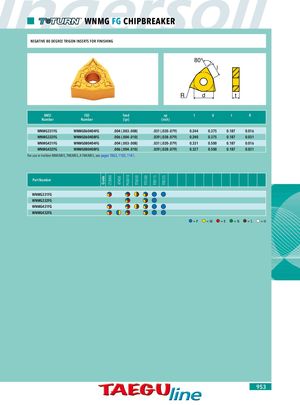

Grade CT3000 KT450 PV3010 TT5030 TT5100 TT8115 TT8125 WNMG FG CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR FINISHING 80° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG331FG WNMG060404FG .004 (.003-.008) .031 (.020-.079) 0.244 0.375 0.187 0.016 WNMG332FG WNMG060408FG .006 (.004-.010) .039 (.028-.079) 0.240 0.375 0.187 0.031 WNMG431FG WNMG080404FG .004 (.003-.008) .031 (.020-.079) 0.331 0.500 0.187 0.016 WNMG432FG WNMG080408FG .006 (.004-.010) .039 (.028-.079) 0.327 0.500 0.187 0.031 For use in holders MWLNR/L, TWLNR/L, A-TWLNR/L, see pages 1063, 1102, 1141. Part Number WNMG331FG WNMG332FG WNMG431FG WNMG432FG =P =M =K =N =S =H 953
