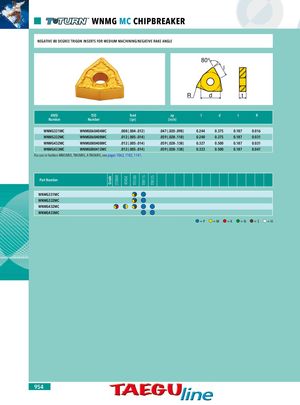

Grade CT3000 KT450 TT5100 TT8115 TT8125 WNMG MC CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR MEDIUM MACHINING/NEGATIVE RAKE ANGLE 80° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG331MC WNMG060404MC .008 (.004-.012) .047 (.020-.098) 0.244 0.375 0.187 0.016 WNMG332MC WNMG060408MC .012 (.005-.014) .059 (.028-.118) 0.240 0.375 0.187 0.031 WNMG432MC WNMG080408MC .012 (.005-.014) .059 (.028-.138) 0.327 0.500 0.187 0.031 WNMG433MC WNMG080412MC .012 (.005-.014) .059 (.028-.138) 0.323 0.500 0.187 0.047 For use in holders MWLNR/L, TWLNR/L, A-TWLNR/L, see pages 1063, 1102, 1141. Part Number WNMG331MC WNMG332MC WNMG432MC WNMG433MC =P =M =K =N =S =H 954
