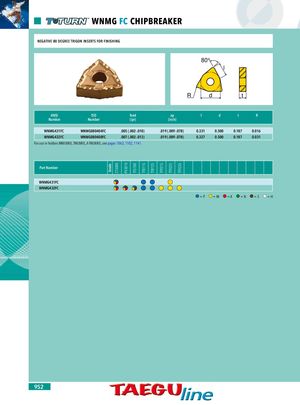

Grade CT3000 PV3010 TT5100 TT8115 TT8125 TT9215 TT9225 TT9235 WNMG FC CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR FINISHING 80° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG431FC WNMG080404FC .005 (.002-.010) .019 (.009-.078) 0.331 0.500 0.187 0.016 WNMG432FC WNMG080408FC .007 (.002-.013) .019 (.009-.078) 0.327 0.500 0.187 0.031 For use in holders MWLNR/L, TWLNR/L, A-TWLNR/L, see pages 1063, 1102, 1141. Part Number WNMG431FC WNMG432FC =P =M =K =N =S =H 952
