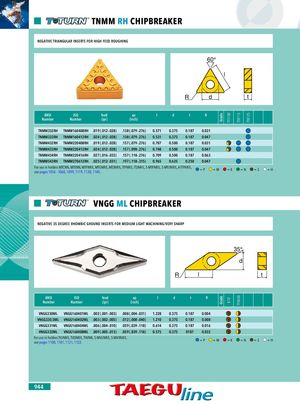

GradeGrade TT5100K10 TT8115TT5030 TT8125 TNMM RH CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR HIGH FEED ROUGHING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMM332RH TNMM160408RH .019 (.012-.028) .138 (.079-.276) 0.571 0.375 0.187 0.031 TNMM333RH TNMM160412RH .024 (.012-.028) .138 (.079-.276) 0.531 0.375 0.187 0.047 TNMM432RH TNMM220408RH .019 (.012-.028) .157 (.079-.276) 0.787 0.500 0.187 0.031 TNMM433RH TNMM220412RH .024 (.012-.028) .157 (.098-.276) 0.748 0.500 0.187 0.047 TNMM434RH TNMM220416RH .027 (.016-.033) .157 (.118-.276) 0.709 0.500 0.187 0.063 TNMM543RH TNMM270612RH .025 (.012-.031) .197 (.118-.315) 0.965 0.625 0.250 0.047 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L,see pages 1056 - 1060, 1099, 1119, 1120, 1140.=P=M=K=N=S=H VNGG ML CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC GROUND INSERTS FOR MEDIUM LIGHT MACHINING/VERY SHARP 35° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) VNGG330ML VNGG160401ML .002 (.001-.003) .008 (.004-.031) 1.228 0.375 0.187 0.004 VNGG330.5ML VNGG160402ML .003 (.002-.005) .012 (.008-.040) 1.210 0.375 0.187 0.008 VNGG331ML VNGG160404ML .006 (.004-.010) .059 (.039-.118) 0.614 0.375 0.187 0.016 VNGG332ML VNGG160408ML .009 (.005-.013) .059 (.039-.118) 0.575 0.375 0187 0.032 For use in holders TVJNR/L, TVQNR/L, TVVNN, S-MVUNR/L, S-MVXNR/L,see pages 1100, 1101, 1121, 1122. =P =M =K =N =S =H 944
