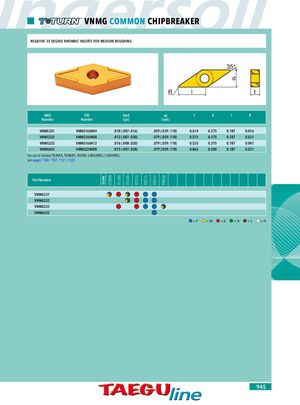

Grade CT3000 TT1300 TT5100 TT7310 TT8115 TT8125 TT9030 VNMG COMMON CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING 35° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) VNMG331 VNMG160404 .010 (.007-.016) .059 (.039-.118) 0.614 0.375 0.187 0.016 VNMG332 VNMG160408 .013 (.007-.020) .079 (.059-.118) 0.575 0.375 0.187 0.031 VNMG333 VNMG160412 .016 (.008-.020) .079 (.059-.118) 0.535 0.375 0.187 0.047 VNMG432 VNMG220408 .013 (.007-.020) .079 (.059-.118) 0.866 0.500 0.187 0.031 For use in holders TVJNR/L, TVQNR/L, TVVNN, S-MVUNR/L, S-MVXNR/L, see pages 1100, 1101, 1121, 1122. Part Number VNMG331 VNMG332 VNMG333 VNMG432 =P =M =K =N =S =H 945
