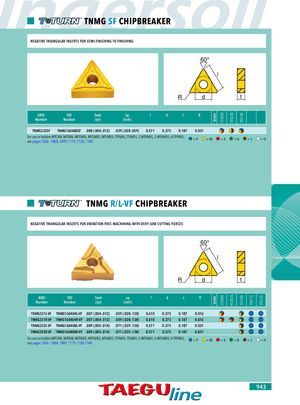

GradeGrade CT3000CT3000 TT5030PV3010 TT5100TT5100 TT8115 TT8125 TNMG SF CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR SEMI-FINISHING TO FINISHING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG332SF TNMG160408SF .008 (.004-.012) .039 (.028-.059) 0.571 0.375 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L,see pages 1056 - 1060, 1099, 1119, 1120, 1140.=P=M=K=N=S =H TNMG R/L-VF CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR VIBRATION FREE MACHINING WITH VERY LOW CUTTING FORCES 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331L-VF TNMG160404L-VF .007 (.004-.012) .059 (.028-.138) 0.610 0.375 0.187 0.016 TNMG331R-VF TNMG160404R-VF .007 (.004-.012) .059 (.028-.138) 0.610 0.375 0.187 0.016 TNMG332L-VF TNMG160408L-VF .009 (.005-.014) .071 (.039-.138) 0.571 0.375 0.187 0.031 TNMG332R-VF TNMG160408R-VF .009 (.005-.014) .071 (.039-.138) 0.571 0.375 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, =P =M =K =N =S =H see pages 1056 - 1060, 1099, 1119, 1120,1140. 943
