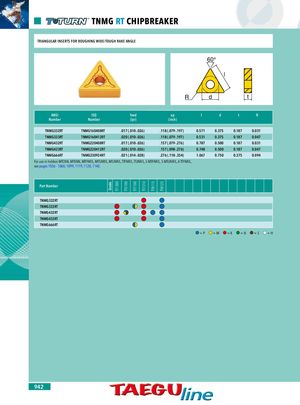

Grade TT1300 TT5100 TT7100 TT7310 TT8115 TT8125 TNMG RT CHIPBREAKER TRIANGULAR INSERTS FOR ROUGHING WIDE/TOUGH RAKE ANGLE 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG332RT TNMG160408RT .017 (.010-.026) .118 (.079-.197) 0.571 0.375 0.187 0.031 TNMG333RT TNMG160412RT .020 (.010-.026) .118 (.079-.197) 0.531 0.375 0.187 0.047 TNMG432RT TNMG220408RT .017 (.010-.026) .157 (.079-.276) 0.787 0.500 0.187 0.031 TNMG433RT TNMG220412RT .020 (.010-.026) .157 (.098-.276) 0.748 0.500 0.187 0.047 TNMG666RT TNMG330924RT .021 (.014-.028) .276 (.118-.354) 1.067 0.750 0.375 0.094 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1140. Part Number TNMG332RT TNMG333RT TNMG432RT TNMG433RT TNMG666RT =P =M =K =N =S =H 942
