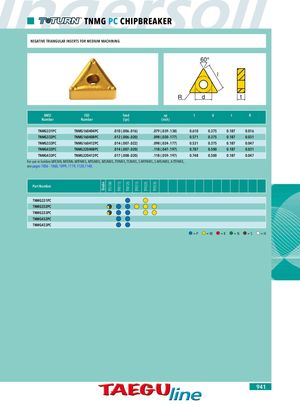

Grade TT5100 TT8115 TT8125 TT9215 TT9225 TT9235 TNMG PC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM MACHINING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331PC TNMG160404PC .010 (.006-.016) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNMG332PC TNMG160408PC .012 (.006-.020) .098 (.020-.177) 0.571 0.375 0.187 0.031 TNMG333PC TNMG160412PC .014 (.007-.022) .098 (.024-.177) 0.531 0.375 0.187 0.047 TNMG432PC TNMG220408PC .014 (.007-.020) .118 (.047-.197) 0.787 0.500 0.187 0.031 TNMG433PC TNMG220412PC .017 (.008-.020) .118 (.059-.197) 0.748 0.500 0.187 0.047 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120,1140. Part Number TNMG331PC TNMG332PC TNMG333PC TNMG432PC TNMG433PC =P =M =K =N =S =H 941
