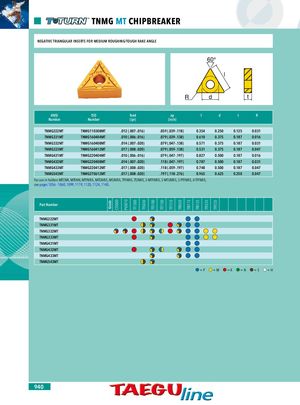

Grade CT3000 PV3010 TT1300 TT5030 TT5100 TT7100 TT7310 TT8020 TT8115 TT8125 TT9225 TT9235 TNMG MT CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM ROUGHING/TOUGH RAKE ANGLE 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG222MT TNMG110308MT .012 (.007-.016) .059 (.039-.118) 0.354 0.250 0.125 0.031 TNMG331MT TNMG160404MT .010 (.006-.016) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNMG332MT TNMG160408MT .014 (.007-.020) .079 (.047-.138) 0.571 0.375 0.187 0.031 TNMG333MT TNMG160412MT .017 (.008-.020) .079 (.059-.138) 0.531 0.375 0.187 0.047 TNMG431MT TNMG220404MT .010 (.006-.016) .079 (.047-.197) 0.827 0.500 0.187 0.016 TNMG432MT TNMG220408MT .014 (.007-.020) .118 (.047-.197) 0.787 0.500 0.187 0.031 TNMG433MT TNMG220412MT .017 (.008-.020) .118 (.059-.197) 0.748 0.500 0.187 0.047 TNMG543MT TNMG270612MT .017 (.008-.020) .197 (.118-.276) 0.965 0.625 0.250 0.047 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, S-PTFNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1124, 1140. Part Number TNMG222MT TNMG331MT TNMG332MT TNMG333MT TNMG431MT TNMG432MT TNMG433MT TNMG543MT =P =M =K =N =S =H 940
