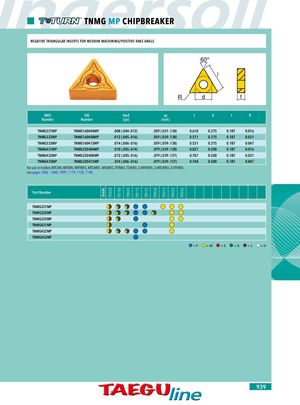

Grade TT5030 TT5100 TT8020 TT8115 TT8125 TT9030 TT9215 TT9225 TT9235 TNMG MP CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM MACHINING/POSITIVE RAKE ANGLE 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331MP TNMG160404MP .008 (.004-.012) .059 (.031-.138) 0.610 0.375 0.187 0.016 TNMG332MP TNMG160408MP .012 (.005-.016) .059 (.039-.138) 0.571 0.375 0.187 0.031 TNMG333MP TNMG160412MP .014 (.006-.016) .059 (.059-.138) 0.531 0.375 0.187 0.047 TNMG431MP TNMG220404MP .010 (.005-.014) .079 (.039-.138) 0.827 0.500 0.187 0.016 TNMG432MP TNMG220408MP .012 (.005-.016) .079 (.039-.157) 0.787 0.500 0.187 0.031 TNMG433MP TNMG220412MP .014 (.006-.016) .079 (.039-.157) 0.748 0.500 0.187 0.047 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1140. Part Number TNMG331MP TNMG332MP TNMG333MP TNMG431MP TNMG432MP TNMG433MP =P =M =K =N =S =H 939
