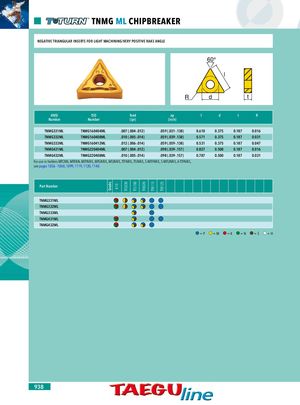

Grade K10 TT5030 TT5100 TT8020 TT8115 TT8125 TNMG ML CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR LIGHT MACHINING/VERY POSITIVE RAKE ANGLE 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331ML TNMG160404ML .007 (.004-.012) .059 (.031-.138) 0.610 0.375 0.187 0.016 TNMG332ML TNMG160408ML .010 (.005-.014) .059 (.039-.138) 0.571 0.375 0.187 0.031 TNMG333ML TNMG160412ML .012 (.006-.014) .059 (.059-.138) 0.531 0.375 0.187 0.047 TNMG431ML TNMG220404ML .007 (.004-.012) .098 (.039-.157) 0.827 0.500 0.187 0.016 TNMG432ML TNMG220408ML .010 (.005-.014) .098 (.039-.157) 0.787 0.500 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1140. Part Number TNMG331ML TNMG332ML TNMG333ML TNMG431ML TNMG432ML =P =M =K =N =S =H 938
