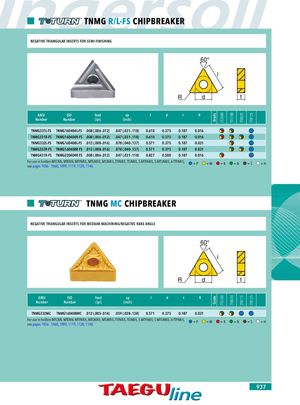

GradeGrade CT3000TT5100 TT5100TT8020 TT8020TT8115 TT8125TT8125 TNMG R/L-FS CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR SEMI-FINISHING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331L-FS TNMG160404L-FS .008 (.006-.012) .047 (.031-.118) 0.610 0.375 0.187 0.016 TNMG331R-FS TNMG160404R-FS .008 (.006-.012) .047 (.031-.118) 0.610 0.375 0.187 0.016 TNMG332L-FS TNMG160408L-FS .012 (.008-.016) .078 (.040-.137) 0.571 0.375 0.187 0.031 TNMG332R-FS TNMG160408R-FS .012 (.008-.016) .078 (.040-.137) 0.571 0.375 0.187 0.031 TNMG431R-FS TNMG220404R-FS .008 (.006-.012) .047 (.031-.118) 0.827 0.500 0.187 0.016 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L,see pages 1056 - 1060, 1099, 1119, 1120, 1140.=P=M=K=N=S =H TNMG MC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM MACHINING/NEGATIVE RAKE ANGLE 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG332MC TNMG160408MC .012 (.005-.014) .059 (.028-.138) 0.571 0.375 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L,see pages 1056 - 1060, 1099, 1119, 1120, 1140.=P=M=K=N=S =H 937
