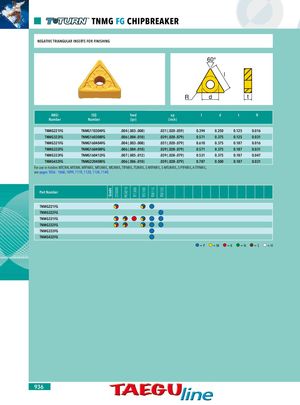

Grade CT3000 PV3010 TT1300 TT5100 TT8115 TT8125 TNMG FG CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR FINISHING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG221FG TNMG110304FG .004 (.003-.008) .031 (.020-.059) 0.394 0.250 0.125 0.016 TNMG322FG TNMG160308FG .006 (.004-.010) .039 (.028-.079) 0.571 0.375 0.125 0.031 TNMG331FG TNMG160404FG .004 (.003-.008) .031 (.020-.079) 0.610 0.375 0.187 0.016 TNMG332FG TNMG160408FG .006 (.004-.010) .039 (.028-.079) 0.571 0.375 0.187 0.031 TNMG333FG TNMG160412FG .007 (.005-.012) .039 (.028-.079) 0.531 0.375 0.187 0.047 TNMG432FG TNMG220408FG .006 (.006-.010) .039 (.028-.079) 0.787 0.500 0.187 0.031 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, S-PTFNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1124, 1140. Part Number TNMG221FG TNMG322FG TNMG331FG TNMG332FG TNMG333FG TNMG432FG =P =M =K =N =S =H 936
