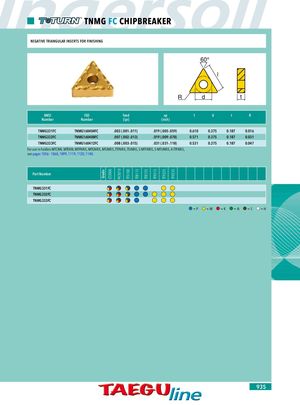

Grade CT3000 PV3010 TT5100 TT8115 TT8125 TT9215 TT9225 TT9235 TNMG FC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR FINISHING 60° l R d t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG331FC TNMG160404FC .003 (.001-.011) .019 (.005-.059) 0.610 0.375 0.187 0.016 TNMG332FC TNMG160408FC .007 (.002-.013) .019 (.009-.078) 0.571 0.375 0.187 0.031 TNMG333FC TNMG160412FC .008 (.003-.015) .031 (.031-.118) 0.531 0.375 0.187 0.047 For use in holders MTCNN, MTENN, MTFNR/L, MTGNR/L, MTJNR/L, TTFNR/L, TTJNR/L, S-MTFNR/L, S-MTUNR/L, A-TTFNR/L, see pages 1056 - 1060, 1099, 1119, 1120, 1140. Part Number TNMG331FC TNMG332FC TNMG333FC =P =M =K =N =S =H 935
