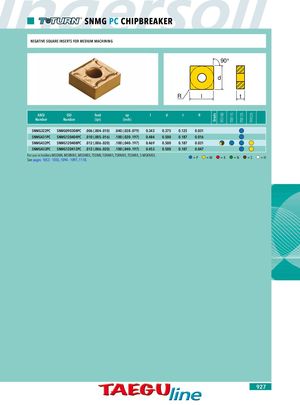

Grade TT5100 TT8115 TT8125 TT9225 SNMG PC CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM MACHINING 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG322PC SNMG090308PC .006 (.004-.010) .040 (.028-.079) 0.343 0.375 0.125 0.031 SNMG431PC SNMG120404PC .010 (.005-.016) .100 (.020-.197) 0.484 0.500 0.187 0.016 SNMG432PC SNMG120408PC .012 (.006-.020) .100 (.040-.197) 0.469 0.500 0.187 0.031 SNMG433PC SNMG120412PC .012 (.006-.020) .100 (.040-.197) 0.453 0.500 0.187 0.047 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L.See pages 1053 - 1055, 1094 - 1097, 1118.=P=M=K =N =S =H 927
