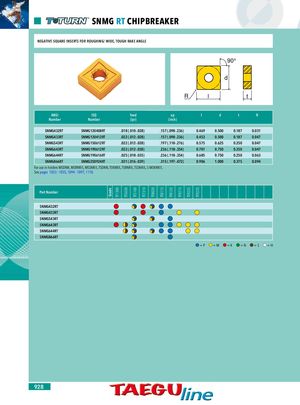

Grade TT1300 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9215 TT9225 TT9235 SNMG RT CHIPBREAKER NEGATIVE SQUARE INSERTS FOR ROUGHING/ WIDE, TOUGH RAKE ANGLE 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG432RT SNMG120408RT .018 (.010-.028) .157 (.098-.236) 0.469 0.500 0.187 0.031 SNMG433RT SNMG120412RT .022 (.012-.028) .157 (.098-.236) 0.453 0.500 0.187 0.047 SNMG543RT SNMG150612RT .022 (.012-.028) .197 (.118-.276) 0.575 0.625 0.250 0.047 SNMG643RT SNMG190612RT .022 (.012-.030) .236 (.118-.354) 0.701 0.750 0.250 0.047 SNMG644RT SNMG190616RT .025 (.018-.035) .236 (.118-.354) 0.685 0.750 0.250 0.063 SNMG866RT SNMG250924RT .031 (.016-.039) .315 (.197-.472) 0.906 1.000 0.375 0.094 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L. See pages 1053 - 1055, 1094 - 1097, 1118. Part Number SNMG432RT SNMG433RT SNMG543RT SNMG643RT SNMG644RT SNMG866RT =P =M =K =N =S =H 928
