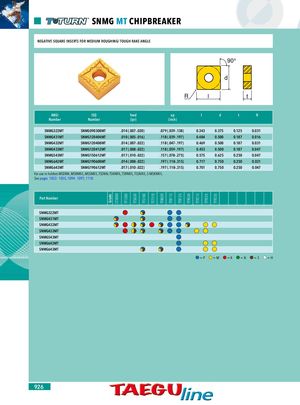

Grade CT3000 TT1300 TT5030 TT5100 TT7310 TT8020 TT8115 TT8125 TT9030 TT9215 TT9225 TT9235 SNMG MT CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM ROUGHING/ TOUGH RAKE ANGLE 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG322MT SNMG090308MT .014 (.007-.020) .079 (.039-.138) 0.343 0.375 0.125 0.031 SNMG431MT SNMG120404MT .010 (.005-.016) .118 (.039-.197) 0.484 0.500 0.187 0.016 SNMG432MT SNMG120408MT .014 (.007-.022) .118 (.047-.197) 0.469 0.500 0.187 0.031 SNMG433MT SNMG120412MT .017 (.008-.022) .118 (.059-.197) 0.453 0.500 0.187 0.047 SNMG543MT SNMG150612MT .017 (.010-.022) .157 (.078-.275) 0.575 0.625 0.250 0.047 SNMG642MT SNMG190608MT .014 (.008-.022) .197 (.118-.315) 0.717 0.750 0.250 0.031 SNMG643MT SNMG190612MT .017 (.010-.022) .197 (.118-.315) 0.701 0.750 0.250 0.047 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L. See pages 1053 - 1055, 1094 - 1097, 1118. Part Number SNMG322MT SNMG431MT SNMG432MT SNMG433MT SNMG543MT SNMG642MT SNMG643MT =P =M =K =N =S =H 926
