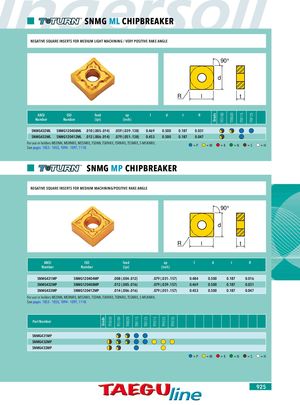

Grade TT5030 TT5100 TT8020 TT8115 TT8125 TT9215 TT9225 TT9235 Grade TT5100 TT8020 TT8115 TT8125 SNMG ML CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM LIGHT MACHINING / VERY POSITIVE RAKE ANGLE 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG432ML SNMG120408ML .010 (.005-.014) .059 (.039-.138) 0.469 0.500 0.187 0.031 SNMG433ML SNMG120412ML .012 (.006-.014) .079 (.051-.138) 0.453 0.500 0.187 0.047 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L.See pages 1053 - 1055, 1094 - 1097, 1118. =P =M =K =N =S =H SNMG MP CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM MACHINING/POSITIVE RAKE ANGLE 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG431MP SNMG120404MP .008 (.004-.012) .079 (.031-.157) 0.484 0.500 0.187 0.016 SNMG432MP SNMG120408MP .012 (.005-.016) .079 (.039-.157) 0.469 0.500 0.187 0.031 SNMG433MP SNMG120412MP .014 (.006-.016) .079 (.051-.157) 0.453 0.500 0.187 0.047 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L. See pages 1053 - 1055, 1094 - 1097, 1118. Part Number SNMG431MP SNMG432MP SNMG433MP =P =M =K =N =S =H 925
