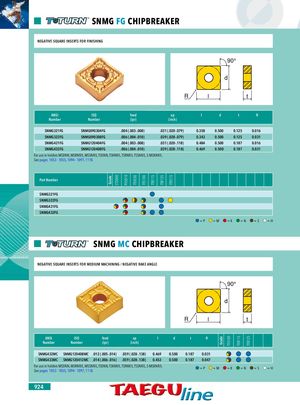

Grade CT3000 PV3010 TT5030 TT5100 TT8115 TT8125 TT9215 Grade TT5100 TT8115 TT8125 SNMG FG CHIPBREAKER NEGATIVE SQUARE INSERTS FOR FINISHING 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG321FG SNMG090304FG .004 (.003-.008) .031 (.020-.079) 0.358 0.500 0.125 0.016 SNMG322FG SNMG090308FG .006 (.004-.010) .039 (.028-.079) 0.343 0.500 0.125 0.031 SNMG431FG SNMG120404FG .004 (.003-.008) .031 (.020-.118) 0.484 0.500 0.187 0.016 SNMG432FG SNMG120408FG .006 (.004-.010) .039 (.028-.118) 0.469 0.500 0.187 0.031 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L. See pages 1053 - 1055, 1094 - 1097, 1118. Part Number SNMG321FG SNMG322FG SNMG431FG SNMG432FG =P =M =K =N =S =H SNMG MC CHIPBREAKER NEGATIVE SQUARE INSERTS FOR MEDIUM MACHINING / NEGATIVE RAKE ANGLE 90° d R l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) SNMG432MC SNMG120408MC .012 (.005-.014) .059 (.028-.138) 0.469 0.500 0.187 0.031 SNMG433MC SNMG120412MC .014 (.006-.016) .059 (.028-.138) 0.453 0.500 0.187 0.047 For use in holders MSDNN, MSRNR/L, MSSNR/L, TSDNN, TSKNR/L, TSRNR/L, TSSNR/L, S-MSKNR/L.See pages 1053 - 1055, 1094 - 1097, 1118. =P =M =K =N =S =H 924
