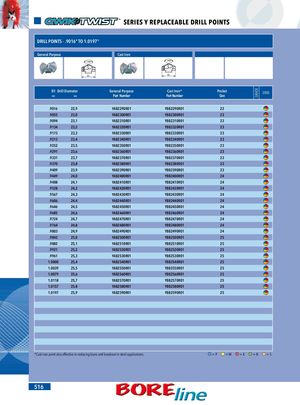

GRADE PART SERIES SERIES Y REPLACEABLE DRILL POINTS DPARRITLLSEPROIEISNTS - .9016“ TO 1.0197“ application 1 application 2 application 3 application 4 application 5 application 6 application 7 General Purpose Cast Iron 140° 140° D1 D1 D1 Drill Diameter General Purpose Cast Iron* Pocket inch mm Part Nu mber Part NumberSize 2005 .9016 22,9 YAB2290R01 YBB2290R01 22 .9055 23,0 YAB2300R01 YBB2300R01 23 .9094 23,1 YAB2310R01 YBB2310R01 23 .9134 23,2 YAB2320R01 YBB2320R01 23 .9173 23,3 YAB2330R01 YBB2330R01 23 .9213 23,4 YAB2340R01 YBB2340R01 23 .9252 23,5 YAB2350R01 YBB2350R01 23 .9291 23,6 YAB2360R01 YBB2360R01 23 .9331 23,7 YAB2370R01 YBB2370R01 23 .9370 23,8 YAB2380R01 YBB2380R01 23 .9409 23,9 YAB2390R01 YBB2390R01 23 .9449 24,0 YAB2400R01 YBB2400R01 24 .9488 24,1 YAB2410R01 YBB2410R01 24 .9528 24,2 YAB2420R01 YBB2420R01 24 .9567 24,3 YAB2430R01 YBB2430R01 24 .9606 24,4 YAB2440R01 YBB2440R01 24 .9646 24,5 YAB2450R01 YBB2450R01 24 .9685 24,6 YAB2460R01 YBB2460R01 24 .9724 24,7 YAB2470R01 YBB2470R01 24 .9764 24,8 YAB2480R01 YBB2480R01 24 .9803 24,9 YAB2490R01 YBB2490R01 24 .9843 25,0 YAB2500R01 YBB2500R01 25 .9882 25,1 YAB2510R01 YBB2510R01 25 .9921 25,2 YAB2520R01 YBB2520R01 25 .9961 25,3 YAB2530R01 YBB2530R01 25 1.0000 25,4 YAB2540R01 YBB2540R01 25 1.0039 25,5 YAB2550R01 YBB2550R01 25 1.0079 25,6 YAB2560R01 YBB2560R01 25 1.0118 25,7 YAB2570R01 YBB2570R01 25 1.0157 25,8 YAB2580R01 YBB2580R01 25 1.0197 25,9 YAB2590R01 YBB2590R01 25 *Cast iron point also effective in reducing burrs and breakout in steel applications. =P =M =K =N =S 516
