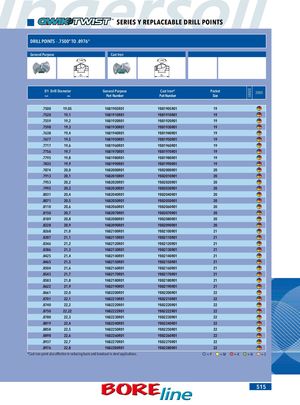

GRADE SERIES Y REPLACEABLE DRILL POINTS DRILL POINTS - .7500“ TO .8976“ General Purpose Cast Iron 140° 140° D1 D1 D1 Drill Diameter General Purpose Cast Iron* Pocket inch mm Part Nu mber Part NumberSize2005 .7500 19,05 YAB1905R01 YBB1905R01 19 .7520 19,1 YAB1910R01 YBB1910R01 19 .7559 19,2 YAB1920R01 YBB1920R01 19 .7598 19,3 YAB1930R01 YBB1930R01 19 .7638 19,4 YAB1940R01 YBB1940R01 19 .7677 19,5 YAB1950R01 YBB1950R01 19 .7717 19,6 YAB1960R01 YBB1960R01 19 .7756 19,7 YAB1970R01 YBB1970R01 19 .7795 19,8 YAB1980R01 YBB1980R01 19 .7835 19,9 YAB1990R01 YBB1990R01 19 .7874 20,0 YAB2000R01 YBB2000R01 20 .7913 20,1 YAB2010R01 YBB2010R01 20 .7953 20,2 YAB2020R01 YBB2020R01 20 .7992 20,3 YAB2030R01 YBB2030R01 20 .8031 20,4 YAB2040R01 YBB2040R01 20 .8071 20,5 YAB2050R01 YBB2050R01 20 .8110 20,6 YAB2060R01 YBB2060R01 20 .8150 20,7 YAB2070R01 YBB2070R01 20 .8189 20,8 YAB2080R01 YBB2080R01 20 .8228 20,9 YAB2090R01 YBB2090R01 20 .8268 21,0 YAB2100R01 YBB2100R01 21 .8307 21,1 YAB2110R01 YBB2110R01 21 .8346 21,2 YAB2120R01 YBB2120R01 21 .8386 21,3 YAB2130R01 YBB2130R01 21 .8425 21,4 YAB2140R01 YBB2140R01 21 .8465 21,5 YAB2150R01 YBB2150R01 21 .8504 21,6 YAB2160R01 YBB2160R01 21 .8543 21,7 YAB2170R01 YBB2170R01 21 .8583 21,8 YAB2180R01 YBB2180R01 21 .8622 21,9 YAB2190R01 YBB2190R01 21 .8661 22,0 YAB2200R01 YBB2200R01 22 .8701 22,1 YAB2210R01 YBB2210R01 22 .8740 22,2 YAB2220R01 YBB2220R01 22 .8750 22,22 YAB2222R01 YBB2222R01 22 .8780 22,3 YAB2230R01 YBB2230R01 22 .8819 22,4 YAB2240R01 YBB2240R01 22 .8858 22,5 YAB2250R01 YBB2250R01 22 .8898 22,6 YAB2260R01 YBB2260R01 22 .8937 22,7 YAB2270R01 YBB2270R01 22 .8976 22,8 YAB2280R01 YBB2280R01 22 *Cast iron point also effective in reducing burrs and breakout in steel applications. =P =M =K =N =S 515
