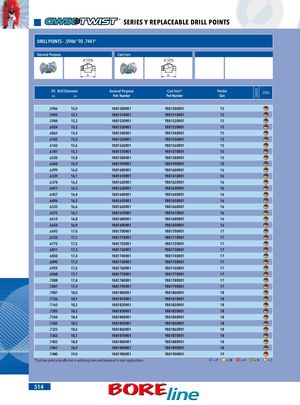

GRADE SERIES Y REPLACEABLE DRILL POINTS DRILL POINTS - .5906“ TO .7441“ General Purpose Cast Iron 140° 140° D1 D1 D1 Drill Diameter General Purpose Cast Iron* Pocket inch mm Part Nu mber Part NumberSize2005 .5906 15,0 YAB1500R01 YBB1500R01 15 .5945 15,1 YAB1510R01 YBB1510R01 15 .5984 15,2 YAB1520R01 YBB1520R01 15 .6024 15,3 YAB1530R01 YBB1530R01 15 .6063 15,4 YAB1540R01 YBB1540R01 15 .6102 15,5 YAB1550R01 YBB1550R01 15 .6142 15,6 YAB1560R01 YBB1560R01 15 .6181 15,7 YAB1570R01 YBB1570R01 15 .6220 15,8 YAB1580R01 YBB1580R01 15 .6260 15,9 YAB1590R01 YBB1590R01 15 .6299 16,0 YAB1600R01 YBB1600R01 16 .6339 16,1 YAB1610R01 YBB1610R01 16 .6378 16,2 YAB1620R01 YBB1620R01 16 .6417 16,3 YAB1630R01 YBB1630R01 16 .6457 16,4 YAB1640R01 YBB1640R01 16 .6496 16,5 YAB1650R01 YBB1650R01 16 .6535 16,6 YAB1660R01 YBB1660R01 16 .6575 16,7 YAB1670R01 YBB1670R01 16 .6614 16,8 YAB1680R01 YBB1680R01 16 .6654 16,9 YAB1690R01 YBB1690R01 16 .6693 17,0 YAB1700R01 YBB1700R01 17 .6732 17,1 YAB1710R01 YBB1710R01 17 .6772 17,2 YAB1720R01 YBB1720R01 17 .6811 17,3 YAB1730R01 YBB1730R01 17 .6850 17,4 YAB1740R01 YBB1740R01 17 .6890 17,5 YAB1750R01 YBB1750R01 17 .6929 17,6 YAB1760R01 YBB1760R01 17 .6968 17,7 YAB1770R01 YBB1770R01 17 .7008 17,8 YAB1780R01 YBB1780R01 17 .7047 17,9 YAB1790R01 YBB1790R01 17 .7087 18,0 YAB1800R01 YBB1800R01 18 .7126 18,1 YAB1810R01 YBB1810R01 18 .7165 18,2 YAB1820R01 YBB1820R01 18 .7205 18,3 YAB1830R01 YBB1830R01 18 .7244 18,4 YAB1840R01 YBB1840R01 18 .7283 18,5 YAB1850R01 YBB1850R01 18 .7323 18,6 YAB1860R01 YBB1860R01 18 .7362 18,7 YAB1870R01 YBB1870R01 18 .7402 18,8 YAB1880R01 YBB1880R01 18 .7441 18,9 YAB1890R01 YBB1890R01 18 .7480 19,0 YAB1900R01 YBB1900R01 19 *Cast iron point also effective in reducing burrs and breakout in steel applications. =P =M =K =N =S 514
