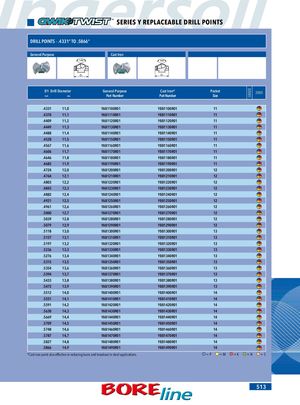

GRADE SERIES Y REPLACEABLE DRILL POINTS DRILL POINTS - .4331“ TO .5866“ General Purpose Cast Iron 140° 140° D1 D1 D1 Drill Diameter General Purpose Cast Iron* Pocket inch mm Part Nu mber Part NumberSize2005 .4331 11,0 YAB1100R01 YBB1100R01 11 .4370 11,1 YAB1110R01 YBB1110R01 11 .4409 11,2 YAB1120R01 YBB1120R01 11 .4449 11,3 YAB1130R01 YBB1130R01 11 .4488 11,4 YAB1140R01 YBB1140R01 11 .4528 11,5 YAB1150R01 YBB1150R01 11 .4567 11,6 YAB1160R01 YBB1160R01 11 .4606 11,7 YAB1170R01 YBB1170R01 11 .4646 11,8 YAB1180R01 YBB1180R01 11 .4685 11,9 YAB1190R01 YBB1190R01 11 .4724 12,0 YAB1200R01 YBB1200R01 12 .4764 12,1 YAB1210R01 YBB1210R01 12 .4803 12,2 YAB1220R01 YBB1220R01 12 .4843 12,3 YAB1230R01 YBB1230R01 12 .4882 12,4 YAB1240R01 YBB1240R01 12 .4921 12,5 YAB1250R01 YBB1250R01 12 .4961 12,6 YAB1260R01 YBB1260R01 12 .5000 12,7 YAB1270R01 YBB1270R01 12 .5039 12,8 YAB1280R01 YBB1280R01 12 .5079 12,9 YAB1290R01 YBB1290R01 12 .5118 13,0 YAB1300R01 YBB1300R01 13 .5157 13,1 YAB1310R01 YBB1310R01 13 .5197 13,2 YAB1320R01 YBB1320R01 13 .5236 13,3 YAB1330R01 YBB1330R01 13 .5276 13,4 YAB1340R01 YBB1340R01 13 .5315 13,5 YAB1350R01 YBB1350R01 13 .5354 13,6 YAB1360R01 YBB1360R01 13 .5394 13,7 YAB1370R01 YBB1370R01 13 .5433 13,8 YAB1380R01 YBB1380R01 13 .5472 13,9 YAB1390R01 YBB1390R01 13 .5512 14,0 YAB1400R01 YBB1400R01 14 .5551 14,1 YAB1410R01 YBB1410R01 14 .5591 14,2 YAB1420R01 YBB1420R01 14 .5630 14,3 YAB1430R01 YBB1430R01 14 .5669 14,4 YAB1440R01 YBB1440R01 14 .5709 14,5 YAB1450R01 YBB1450R01 14 .5748 14,6 YAB1460R01 YBB1460R01 14 .5787 14,7 YAB1470R01 YBB1470R01 14 .5827 14,8 YAB1480R01 YBB1480R01 14 .5866 14,9 YAB1490R01 YBB1490R01 14 *Cast iron point also effective in reducing burrs and breakout in steel applications. =P =M =K =N =S 513
