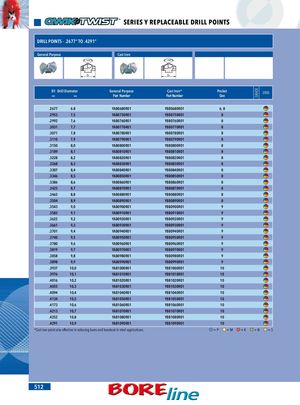

GRADE SERIES Y REPLACEABLE DRILL POINTS DRILL POINTS - .2677“ TO .4291“ General Purpose Cast Iron 140° 140° D1 D1 D1 Drill Diameter General Purpose Cast Iron* Pocket inch mm Part Nu mber Part NumberSize2005 .2677 6.8 YAB0680R01 YBB0680R01 6, 8 .2953 7,5 YAB0750R01 YBB0750R01 8 .2992 7,6 YAB0760R01 YBB0760R01 8 .3031 7,7 YAB0770R01 YBB0770R01 8 .3071 7,8 YAB0780R01 YBB0780R01 8 .3110 7,9 YAB0790R01 YBB0790R01 8 .3150 8,0 YAB0800R01 YBB0800R01 8 .3189 8,1 YAB0810R01 YBB0810R01 8 .3228 8,2 YAB0820R01 YBB0820R01 8 .3268 8,3 YAB0830R01 YBB0830R01 8 .3307 8,4 YAB0840R01 YBB0840R01 8 .3346 8,5 YAB0850R01 YBB0850R01 8 .3386 8,6 YAB0860R01 YBB0860R01 8 .3425 8,7 YAB0870R01 YBB0870R01 8 .3465 8,8 YAB0880R01 YBB0880R01 8 .3504 8,9 YAB0890R01 YBB0890R01 8 .3543 9,0 YAB0900R01 YBB0900R01 9 .3583 9,1 YAB0910R01 YBB0910R01 9 .3622 9,2 YAB0920R01 YBB0920R01 9 .3661 9,3 YAB0930R01 YBB0930R01 9 .3701 9,4 YAB0940R01 YBB0940R01 9 .3740 9,5 YAB0950R01 YBB0950R01 9 .3780 9,6 YAB0960R01 YBB0960R01 9 .3819 9,7 YAB0970R01 YBB0970R01 9 .3858 9,8 YAB0980R01 YBB0980R01 9 .3898 9,9 YAB0990R01 YBB0990R01 9 .3937 10,0 YAB1000R01 YBB1000R01 10 .3976 10,1 YAB1010R01 YBB1010R01 10 .4016 10,2 YAB1020R01 YBB1020R01 10 .4055 10,3 YAB1030R01 YBB1030R01 10 .4094 10,4 YAB1040R01 YBB1040R01 10 .4134 10,5 YAB1050R01 YBB1050R01 10 .4173 10,6 YAB1060R01 YBB1060R01 10 .4213 10,7 YAB1070R01 YBB1070R01 10 .4252 10,8 YAB1080R01 YBB1080R01 10 .4291 10,9 YAB1090R01 YBB1090R01 10 *Cast iron point also effective in reducing burrs and breakout in steel applications. =P =M =K =N =S 512
