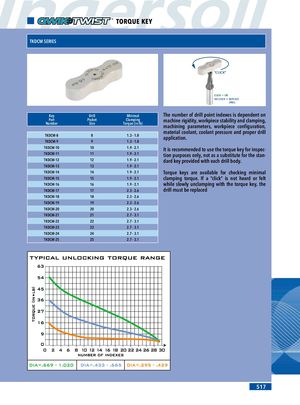

TORQUE KEY THKADRDCWMARSEERIES hardware desc 1 hardware desc 3 hardware desc 4 hardware desc 5 hardware desc 6 hardware desc 7 Key Drill Minimal The number of drill point indexes is dependent on PartNumber PocketSize ClampingTorque (in-lb) machine rigidity, workpiece stability and clamping,machiningparameters,workpiececonfiguration, material coolant, coolant pressure and proper drill TKDCM-8 8 1.3 - 1.8 application. TKDCM-9 9 1.3 - 1.8 TKDCM-10 10 1.9 - 2.1 It is recommended to use the torque key for inspec- TKDCM-11 11 1.9 - 2.1 tion purposes only, not as a substitute for the stan- TKDCM-12 12 1.9 - 2.1 dard key provided with each drill body. TKDCM-13 13 1.9 - 2.1 TKDCM-14 14 1.9 - 2.1 Torque keys are available for checking minimal TKDCM-15 15 1.9 - 2.1 clamping torque. If a “click” is not heard or felt TKDCM-16 16 1.9 - 2.1 while slowly unclamping with the torque key, the TKDCM-17 17 2.3 - 2.6 drill must be replaced TKDCM-18 18 2.3 - 2.6 TKDCM-19 19 2.3 - 2.6 TKDCM-20 20 2.3 - 2.6 TKDCM-21 21 2.7 - 3.1 TKDCM-22 22 2.7 - 3.1 TKDCM-23 23 2.7 - 3.1 TKDCM-24 24 2.7 - 3.1 TKDCM-25 25 2.7 - 3.1 517
