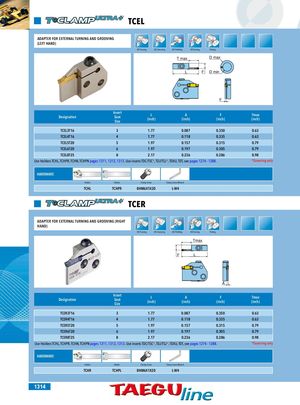

TCEL ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND) OD Turning OD Grooving OD Profiling OD Turning Parting T max D max L F D min F Designation InsertSeatSize L(inch) A(inch) F(inch) Tmax(inch) TCEL3T16 3 1.77 0.087 0.350 0.63 TCEL4T16 4 1.77 0.118 0.335 0.63 TCEL5T20 5 1.97 0.157 0.315 0.79 TCEL6T20 6 1.97 0.197 0.305 0.79 TCEL8T25 8 2.17 0.236 0.286 0.98 Use Holders TCHL, TCHPR, TCHN, TCHPN pages 1311, 1312, 1313. Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, see pages 1274 - 1288. *Grooving only HARDWARE Holder Holder Clamp Screw Clamp Screw Wrench TCHL TCHPR BHM6X1X20 L-W4 TCER ADAPTER FOR EXTERNAL TURNING AND GROOVING (RIGHT HAND) OD Turning OD Grooving OD Profiling OD Turning Parting Tmax F L A Designation InsertSeatSize L(inch) A(inch) F(inch) Tmax(inch) TCER3T16 3 1.77 0.087 0.350 0.63 TCER4T16 4 1.77 0.118 0.335 0.63 TCER5T20 5 1.97 0.157 0.315 0.79 TCER6T20 6 1.97 0.197 0.305 0.79 TCER8T25 8 2.17 0.236 0.286 0.98 Use Holders TCHL, TCHPR, TCHN, TCHPN pages 1311, 1312, 1313. Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, see pages 1274 - 1288. *Grooving only HARDWARE Holder Holder Clamp Screw Clamp Screw Wrench TCHR TCHPL BHM6X1X20 L-W4 1314
