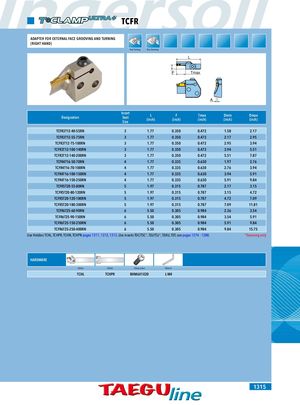

TCFR ADAPTER FOR EXTERNAL FACE GROOVING AND TURNING (RIGHT HAND) Face Turning Face Grooving L F Tmax A Designation InsertSeatSize L(inch) F(inch) Tmax(inch) Dmin(inch) Dmax(inch) TCFR3T12-40-55RN 3 1.77 0.350 0.472 1.58 2.17 TCFR3T12-55-75RN 3 1.77 0.350 0.472 2.17 2.95 TCFR3T12-75-100RN 3 1.77 0.350 0.472 2.95 3.94 TCFR3T12-100-140RN 3 1.77 0.350 0.472 3.94 5.51 TCFR3T12-140-200RN 3 1.77 0.350 0.472 5.51 7.87 TCFR4T16-50-70RN 4 1.77 0.335 0.630 1.97 2.76 TCFR4T16-70-100RN 4 1.77 0.335 0.630 2.76 3.94 TCFR4T16-100-150RN 4 1.77 0.335 0.630 3.94 5.91 TCFR4T16-150-250RN 4 1.77 0.335 0.630 5.91 9.84 TCFR5T20-55-80RN 5 1.97 0.315 0.787 2.17 3.15 TCFR5T20-80-120RN 5 1.97 0.315 0.787 3.15 4.72 TCFR5T20-120-180RN 5 1.97 0.315 0.787 4.72 7.09 TCFR5T20-180-300RN 5 1.97 0.315 0.787 7.09 11.81 TCFR6T25-60-90RN 6 5.50 0.305 0.984 2.36 3.54 TCFR6T25-90-150RN 6 5.50 0.305 0.984 3.54 5.91 TCFR6T25-150-250RN 6 5.50 0.305 0.984 5.91 9.84 TCFR6T25-250-400RN 6 5.50 0.305 0.984 9.84 15.75 Use Holders TCHL, TCHPR, TCHN, TCHPN pages 1311, 1312, 1313. Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT, see pages 1274 - 1288. *Grooving only HARDWARE Holder Holder Clamp Screw Wrench TCHL TCHPR BHM6X1X20 L-W4 1315
