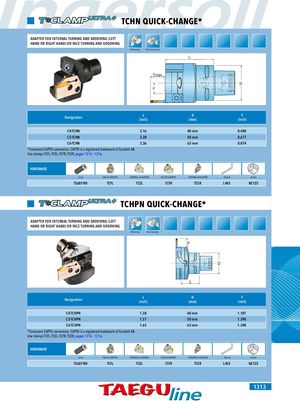

TCHN QUICK-CHANGE* ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND OR RIGHT HAND) OR FACE TURNING AND GROOVING OD Turning Face Groove Turn L Tmax D F Designation L D F(inch)(mm)(inch) C4-TCHN 2.16 40 mm 0.480 C5-TCHN 2.28 50 mm 0.677 C6-TCHN 2.36 63 mm 0.874 ®Coromant CAPTO connection. CAPTO is a registered trademark of Sandvik AB. Use clamps TCFL, TCEL, TCFR, TCER, pages 1314 - 1316. HARDWARE Screw FACE LH ADAPTER EXTERNAL LH ADAPTER FACE RH ADAPTER EXTERNAL RH ADAPTER Wrench Nozzle TS60190I TCFL TCEL TCFR TCER L-W3 NZ125 TCHPN QUICK-CHANGE* ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND OR RIGHT HAND) OR FACE TURNING AND GROOVING OD Turning Face Grooving F D L Designation L D F(inch)(mm)(inch) C4-TCHPN 1.38 40 mm 1.181 C5-TCHPN 1.57 50 mm 1.398 C6-TCHPN 1.65 63 mm 1.398 ®Coromant CAPTO connection. CAPTO is a registered trademark of Sandvik AB. Use clamps TCFL, TCEL, TCFR, TCER, pages 1314 - 1316. HARDWARE Screw FACE LH ADAPTER EXTERNAL LH ADAPTER FACE RH ADAPTER EXTERNAL RH ADAPTER Wrench Nozzle TS60190I TCFL TCEL TCFR TCER L-W3 NZ125 1313
