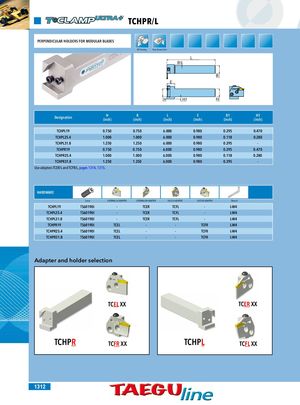

TCHPR/L PERPENDICULAR HOLDERS FOR MODULAR BLADES OD Turning Face Groove Turn L B1 B E H H1 H Designation H B L E B1 H1(inch)(inch)(inch)(inch)(inch)(inch) TCHPL19 0.750 0.750 6.000 0.980 0.295 0.470 TCHPL25.4 1.000 1.000 6.000 0.980 0.118 0.280 TCHPL31.8 1.250 1.250 6.000 0.980 0.295 - TCHPR19 0.750 0.750 6.000 0.980 0.295 0.470 TCHPR25.4 1.000 1.000 6.000 0.980 0.118 0.280 TCHPR31.8 1.250 1.250 6.000 0.980 0.295 - Use adapters TCER/L and TCFR/L, pages 1314, 1315. HARDWARE Screw EXTERNAL LH ADAPTER EXTERNAL RH ADAPTER FACE LH ADAPTER FACE RH ADAPTER Wrench TCHPL19 TS60190I - TCER TCFL - L-W4 TCHPL25.4 TS60190I - TCER TCFL - L-W4 TCHPL31.8 TS60190I - TCER TCFL - L-W4 TCHPR19 TS60190I TCEL - - TCFR L-W4 TCHPR25.4 TS60190I TCEL - - TCFR L-W4 TCHPR31.8 TS60190I TCEL - - TCFR L-W4 Adapter and holder selection TCEL XX TCER XX TCHPR TCFR XX TCHPL TCFL XX 1312
