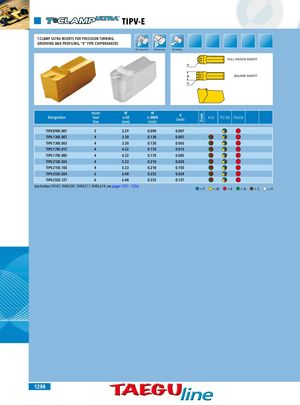

Grade TIPV-E T-CLAMP ULTRA INSERTS FOR PRECISION TURNING, GROOVING AND PROFILING, “V” TYPE CHIPBREAKERS OD Groove Turn OD Grooving OD Profiling FULL RADIUS INSERT R W SQUARE INSERT R Designation InsertSeatSize W W±.02±.0008(mm)(inch) R(inch) K10 TT5100 TT6030 TIPV.090E.007 2 2.29 0.090 0.007 TIPV.130E.007 4 3.30 0.130 0.007 TIPV.130E.065 4 3.30 0.130 0.065 TIPV.170E.015 4 4.32 0.170 0.015 TIPV.170E.085 4 4.32 0.170 0.085 TIPV.210E.024 4 5.33 0.210 0.024 TIPV.210E.105 4 5.33 0.210 0.105 TIPV.255E.024 6 6.48 0.255 0.024 TIPV.255E.127 6 6.48 0.255 0.127 Use holders TH101, THR/L201, THR/L211, THR/L619, see pages 1331 - 1336. = P = M = K = N = S =H 1296
