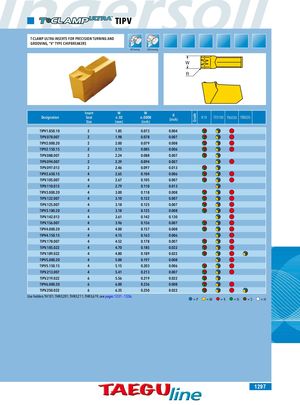

Grade TIPV T-CLAMP ULTRA INSERTS FOR PRECISION TURNING AND GROOVING, “V” TYPE CHIPBREAKERS OD Turning OD Grooving Designation InsertSeatSize W W±.02±.0008(mm)(inch) R(inch) K10 TT5100 TT6030 TT8020 TIPV1.850.10 2 1.85 0.073 0.004 TIPV.078.007 2 1.98 0.078 0.007 TIPV2.000.20 2 2.00 0.079 0.008 TIPV2.150.15 2 2.15 0.085 0.006 TIPV.088.007 2 2.24 0.088 0.007 TIPV.094.007 2 2.39 0.094 0.007 TIPV.097.013 2 2.46 0.097 0.013 TIPV2.650.15 4 2.65 0.104 0.006 TIPV.105.007 4 2.67 0.105 0.007 TIPV.110.013 4 2.79 0.110 0.013 TIPV3.000.20 4 3.00 0.118 0.008 TIPV.122.007 4 3.10 0.122 0.007 TIPV.125.007 4 3.18 0.125 0.007 TIPV3.180.20 4 3.18 0.125 0.008 TIPV.142.013 4 3.61 0.142 0.130 TIPV.156.007 4 3.96 0.156 0.007 TIPV4.000.20 4 4.00 0.157 0.008 TIPV4.150.15 4 4.15 0.163 0.006 TIPV.178.007 4 4.52 0.178 0.007 TIPV.185.022 4 4.70 0.185 0.022 TIPV.189.022 4 4.80 0.189 0.022 TIPV5.000.20 4 5.00 0.197 0.008 TIPV5.150.15 4 5.15 0.203 0.006 TIPV.213.007 4 5.41 0.213 0.007 TIPV.219.022 6 5.56 0.219 0.022 TIPV6.000.20 6 6.00 0.236 0.008 TIPV.250.022 6 6.35 0.250 0.022 Use holders TH101, THR/L201, THR/L211, THR/L619, see pages 1331 - 1336. = P = M = K = N = S =H 112297
