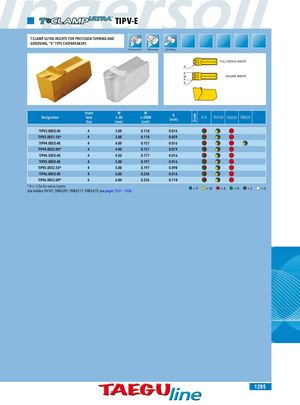

Grade TIPV-E T-CLAMP ULTRA INSERTS FOR PRECISION TURNING AND GROOVING, “V” TYPE CHIPBREAKERS OD Groove Turn OD Grooving OD Profiling FULL RADIUS INSERT R W SQUARE INSERT R Designation InsertSeatSize W W±.02±.0008(mm)(inch) R(inch) K10 TT5100 TT6030 TT8020 TIPV3.00E0.40 4 3.00 0.118 0.016 TIPV3.00E1.50* 4 3.00 0.118 0.059 TIPV4.00E0.40 4 4.00 0.157 0.016 TIPV4.00E2.00* 4 4.00 0.157 0.079 TIPV4.50E0.40 4 4.50 0.177 0.016 TIPV5.00E0.40 4 5.00 0.197 0.016 TIPV5.00E2.50* 4 5.00 0.197 0.098 TIPV6.00E0.40 4 6.00 0.236 0.016 TIPV6.00E3.00* 6 6.00 0.236 0.118 * R = 1/2w for radius inserts.Use holders TH101, THR/L201, THR/L211, THR/L619, see pages 1331 - 1336. = P = M = K = N = S =H 112295
