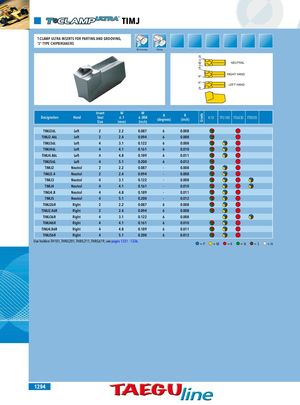

Grade TIMJ T-CLAMP ULTRA INSERTS FOR PARTING AND GROOVING, “J” TYPE CHIPBREAKERS OD Grooving Parting R W NEUTRAL R RIGHT HAND K° K° LEFT HAND R Designation Hand InsertSeatSizeW±.1(mm) W±.004(inch) K(degrees) R(inch) K10 TT5100 TT6030 TT8020 TIMJ26L Left 2 2.2 0.087 6 0.008 TIMJ2.46L Left 2 2.4 0.094 6 0.008 TIMJ36L Left 4 3.1 0.122 6 0.008 TIMJ46L Left 4 4.1 0.161 6 0.010 TIMJ4.86L Left 4 4.8 0.189 6 0.011 TIMJ56L Left 4 5.1 0.200 6 0.012 TIMJ2 Neutral 2 2.2 0.087 - 0.008 TIMJ2.4 Neutral 2 2.4 0.094 - 0.008 TIMJ3 Neutral 4 3.1 0.122 - 0.008 TIMJ4 Neutral 4 4.1 0.161 - 0.010 TIMJ4.8 Neutral 4 4.8 0.189 - 0.011 TIMJ5 Neutral 4 5.1 0.200 - 0.012 TIMJ26R Right 2 2.2 0.087 6 0.008 TIMJ2.46R Right 2 2.4 0.094 6 0.008 TIMJ36R Right 4 3.1 0.122 6 0.008 TIMJ46R Right 4 4.1 0.161 6 0.010 TIMJ4.86R Right 4 4.8 0.189 6 0.011 TIMJ56R Right 4 5.1 0.200 6 0.012 Use holders TH101, THR/L201, THR/L211, THR/L619, see pages 1331 - 1336. = P = M = K = N = S =H 1294
