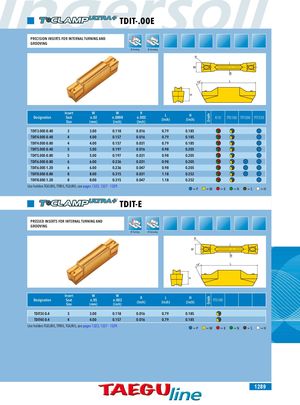

GradeGrade TDIT-.00E PRECISION INSERTS FOR INTERNAL TURNING AND GROOVING ID Turning ID Grooving R W B 14° L H InsertDesignationSeatSizeW W R±.02±.0008±.002(mm)(inch)(Inch)L(inch)H(inch) K10 TT5100 TT7200 TT7220 TDIT3.00E-0.40 3 3.00 0.118 0.016 0.79 0.185 TDIT4.00E-0.40 4 4.00 0.157 0.016 0.79 0.185 TDIT4.00E-0.80 4 4.00 0.157 0.031 0.79 0.185 TDIT5.00E-0.40 5 5.00 0.197 0.016 0.98 0.205 TDIT5.00E-0.80 5 5.00 0.197 0.031 0.98 0.205 TDIT6.00E-0.80 6 6.00 0.236 0.031 0.98 0.205 TDIT6.00E-1.20 6 6.00 0.236 0.047 0.98 0.205 TDIT8.00E-0.80 8 8.00 0.315 0.031 1.18 0.252 TDIT8.00E-1.20 8 8.00 0.315 0.047 1.18 0.252 Use holders TGEUR/L, TTIR/L, TGIUR/L, see pages 1323, 1327 - 1329. = P = M = K = N = S =H TDIT-E PRESSED INSERTS FOR INTERNAL TURNING AND GROOVING ID Turning ID Grooving R W B 14° L H InsertDesignationSeatSizeW±.05(mm)W±.002(inch) R(Inch) L(inch) H(inch) TT5100 TDIT3E-0.4 3 3.00 0.118 0.016 0.79 0.185 TDIT4E-0.4 4 4.00 0.157 0.016 0.79 0.185 Use holders TGEUR/L, TTIR/L, TGIUR/L, see pages 1323, 1327 - 1329. = P = M = K = N = S =H 112289
