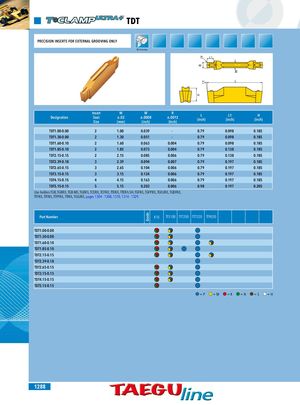

TDT PRECISION INSERTS FOR EXTERNAL GROOVING ONLY OD Grooving R L1 W B 7° L H Designation Insert W W RSeat±.02±.0008±.0012Size(mm)(inch)(Inch)L(inch)L1(inch) H(inch) TDT1.00-0.00 2 1.00 0.039 - 0.79 0.098 0.185 TDT1.30-0.00 2 1.30 0.051 - 0.79 0.098 0.185 TDT1.60-0.10 2 1.60 0.063 0.004 0.79 0.098 0.185 TDT1.85-0.10 2 1.85 0.073 0.004 0.79 0.138 0.185 TDT2.15-0.15 2 2.15 0.085 0.006 0.79 0.138 0.185 TDT2.39-0.18 3 2.39 0.094 0.007 0.79 0.197 0.185 TDT2.65-0.15 3 2.65 0.104 0.006 0.79 0.197 0.185 TDT3.15-0.15 3 3.15 0.124 0.006 0.79 0.197 0.185 TDT4.15-0.15 4 4.15 0.163 0.006 0.79 0.197 0.185 TDT5.15-0.15 5 5.15 0.203 0.006 0.98 0.197 0.205 Use holders TGB, TGBR/L, TGB-MS, TGER/L, TCER/L, TCFR/L, TTER/L, TTER/L-SH, TGFR/L, TGFPR/L, TGEUR/L, TGBFR/L, TTFR/L, TTFR/L, TTFPR/L, TTIR/L, TGIUR/L, pages 1304 - 1308, 1310, 1314 - 1329. Part Number K10 TT5100 TT7200 TT7220 TT9030 TDT1.00-0.00 TDT1.30-0.00 TDT1.60-0.10 TDT1.85-0.10 TDT2.15-0.15 TDT2.39-0.18 TDT2.65-0.15 TDT3.15-0.15 TDT4.15-0.15 TDT5.15-0.15 = P = M = K = N = S =H 1288 Grade
