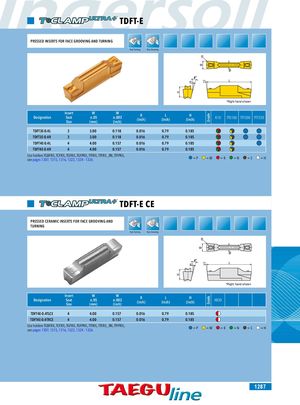

GradeGrade TDFT-E PRESSED INSERTS FOR FACE GROOVING AND TURNING Face Turning Face Grooving R W B 4° 7° L H *Right hand shown InsertDesignationSeatSizeW±.05(mm) W±.002(inch) R(inch) L(inch) H(inch) K10 TT5100 TT7200 TT7220 TDFT3E-0.4L 3 3.00 0.118 0.016 0.79 0.185 TDFT3E-0.4R 3 3.00 0.118 0.016 0.79 0.185 TDFT4E-0.4L 4 4.00 0.157 0.016 0.79 0.185 TDFT4E-0.4R 4 4.00 0.157 0.016 0.79 0.185 Use holders TGBFR/L, TCFR/L, TGFR/L, TGFPR/L, TTFR/L, TTFR/L_RN, TTFPR/L,see pages 1307, 1315, 1316, 1322, 1324 - 1326. = P = M = K = N = S =H TDFT-E CE PRESSED CERAMIC INSERTS FOR FACE GROOVING AND TURNING Face Turning Face Grooving R W B 4° 7° L H *Right hand shown InsertDesignationSeatSizeW±.05(mm) W±.002(inch) R(inch) L(inch) H(inch) AB30 TDFT4E-0.4TLCE 4 4.00 0.157 0.016 0.79 0.185 TDFT4E-0.4TRCE 4 4.00 0.157 0.016 0.79 0.185 Use holders TGBFR/L, TCFR/L, TGFR/L, TGFPR/L, TTFR/L, TTFR/L_RN, TTFPR/L,see pages 1307, 1315, 1316, 1322, 1324 - 1326. = P = M = K = N = S =H 112287
