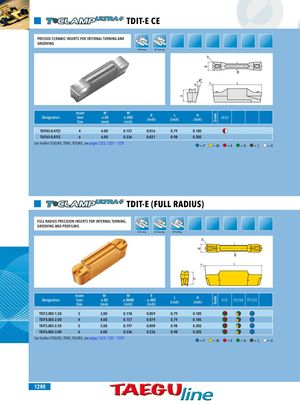

GradeGrade TDIT-E CE PRESSED CERAMIC INSERTS FOR INTERNAL TURNING AND GROOVING ID Turning ID Grooving R W B 4° 7° L H Designation InsertSeatSize W±.05(mm) W±.002(inch) R(inch) L(inch) H(inch) AB30 TDIT4E-0.4TCE 4 4.00 0.157 0.016 0.79 0.185 TDIT6E-0.8TCE 6 6.00 0.236 0.031 0.98 0.205 Use holders TGEUR/L, TTIR/L, TGIUR/L, see pages 1323, 1327 - 1329. = P = M = K = N = S =H TDIT-E (FULL RADIUS) FULL RADIUS PRECISION INSERTS FOR INTERNAL TURNING, GROOVING AND PROFILING ID Turning ID Grooving ID Profiling R W B 7° L H InsertDesignationSeatSizeW±.02(mm) W R±.0008±.002(inch)(inch)L(inch) H(inch) K10 TT5100 TT7220 TDIT3.00E-1.50 3 3.00 0.118 0.059 0.79 0.185 TDIT4.00E-2.00 4 4.00 0.157 0.079 0.79 0.185 TDIT5.00E-2.50 5 5.00 0.197 0.098 0.98 0.205 TDIT6.00E-3.00 6 6.00 0.236 0.236 0.98 0.205 Use holders TGEUR/L, TTIR/L, TGIUR/L, see pages 1323, 1327 - 1329. = P = M = K = N = S =H 1290
