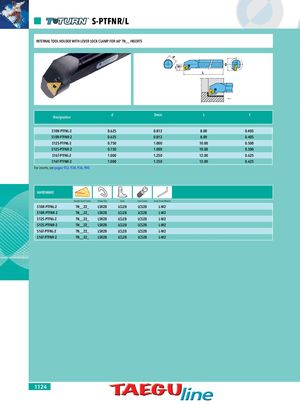

S-PTFNR/L INPATERRTNSAELRTIOESOL HOLDER WITH LEVER LOCK CLAMP FOR 60° TN__ INSERTS d f 91° D L Designation d Dmin L f S10R-PTFNL-2 0.625 0.812 8.00 0.405 S10R-PTFNR-2 0.625 0.812 8.00 0.405 S12S-PTFNL-2 0.750 1.000 10.00 0.500 S12S-PTFNR-2 0.750 1.000 10.00 0.500 S16T-PTFNL-2 1.000 1.250 12.00 0.625 S16T-PTFNR-2 1.000 1.250 12.00 0.625 For inserts, see pages 933, 934, 936, 940. HARDWARE Accepts Insert Series Clamp Clip Lever Lever Screw Lever Screw Wrench S10R-PTFNL-2 TN__22_ LSR2B LCL2B LCS2B L-W2 S10R-PTFNR-2 TN__22_ LSR2B LCL2B LCS2B L-W2 S12S-PTFNL-2 TN__22_ LSR2B LCL2B LCS2B L-W2 S12S-PTFNR-2 TN__22_ LSR2B LCL2B LCS2B L-W2 S16T-PTFNL-2 TN__22_ LSR2B LCL2B LCS2B L-W2 S16T-PTFNR-2 TN__22_ LSR2B LCL2B LCS2B L-W2 1124
