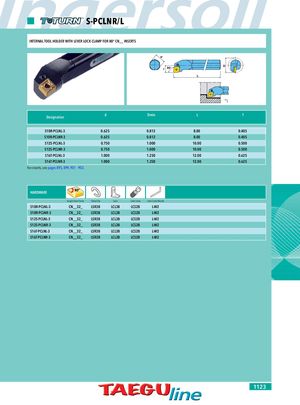

S-PCLNR/L LEVER LOCK/BORING BARS INPATERRTNSAELRTIOESOL HOLDER WITH LEVER LOCK CLAMP FOR 80° CN__ INSERTS d f 95° D L Designation d Dmin L f S10R-PCLNL-3 0.625 0.812 8.00 0.405 S10R-PCLNR-3 0.625 0.812 8.00 0.405 S12S-PCLNL-3 0.750 1.000 10.00 0.500 S12S-PCLNR-3 0.750 1.000 10.00 0.500 S16T-PCLNL-3 1.000 1.250 12.00 0.625 S16T-PCLNR-3 1.000 1.250 12.00 0.625 For inserts, see pages 895, 899, 901 - 903. HARDWARE Accepts Insert Series Clamp Clip Lever Lever Screw Lever Screw Wrench S10R-PCLNL-3 CN__32_ LSR3B LCL3B LCS2B L-W2 S10R-PCLNR-3 CN__32_ LSR3B LCL3B LCS2B L-W2 S12S-PCLNL-3 CN__32_ LSR3B LCL3B LCS2B L-W2 S12S-PCLNR-3 CN__32_ LSR3B LCL3B LCS2B L-W2 S16T-PCLNL-3 CN__32_ LSR3B LCL3B LCS2B L-W2 S16T-PCLNR-3 CN__32_ LSR3B LCL3B LCS2B L-W2 1123
