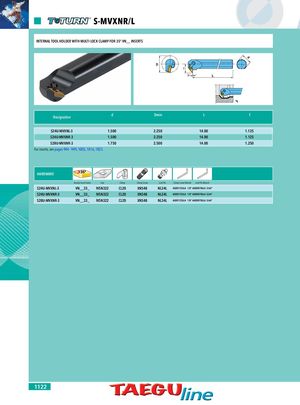

S-MVXNR/L INPATERRTNSAELRTIOESOL HOLDER WITH MULTI LOCK CLAMP FOR 35° VN__ INSERTS d D f 5 L Designation d Dmin L f S24U-MVXNL-3 1.500 2.250 14.00 1.125 S24U-MVXNR-3 1.500 2.250 14.00 1.125 S28U-MVXNR-3 1.750 2.500 14.00 1.250 For inserts, see pages 944 - 949, 1005, 1016, 1023. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench S24U-MVXNL-3 VN__33_ IVSN322 CL20 XNS48 NL34L AG00125LLA 1/8" AG00078LLA 5/64" S24U-MVXNR-3 VN__33_ IVSN322 CL20 XNS48 NL34L AG00125LLA 1/8" AG00078LLA 5/64" S28U-MVXNR-3 VN__33_ IVSN322 CL20 XNS48 NL34L AG00125LLA 1/8" AG00078LLA 5/64" 1122
