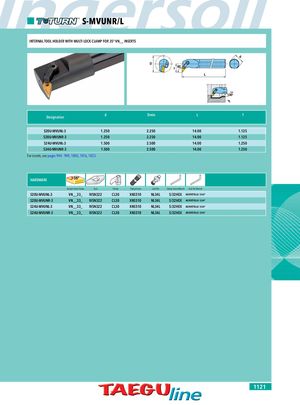

S-MVUNR/L INPATERRTNSAELRTIOESOL HOLDER WITH MULTI LOCK CLAMP FOR 35° VN__ INSERTS d D f 93° L 30° Designation d Dmin L f S20U-MVUNL-3 1.250 2.250 14.00 1.125 S20U-MVUNR-3 1.250 2.250 14.00 1.125 S24U-MVUNL-3 1.500 2.500 14.00 1.250 S24U-MVUNR-3 1.500 2.500 14.00 1.250 For inserts, see pages 944 - 949, 1005, 1016, 1023. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench S20U-MVUNL-3 VN__33_ IVSN322 CL30 XNS510 NL34L 5/32HEX AG00078LLA 5/64" S20U-MVUNR-3 VN__33_ IVSN322 CL30 XNS510 NL34L 5/32HEX AG00078LLA 5/64" S24U-MVUNL-3 VN__33_ IVSN322 CL30 XNS510 NL34L 5/32HEX AG00078LLA 5/64" S24U-MVUNR-3 VN__33_ IVSN322 CL30 XNS510 NL34L 5/32HEX AG00078LLA 5/64" 1121
