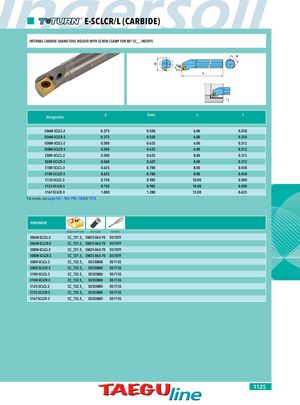

E-SCLCR/L (CARBIDE) SCREW CLAMP/BORING BARS INPATERRTNSAELRCIEASRBIDE SHANK TOOL HOLDER WITH SCREW CLAMP FOR 80° CC__ INSERTS d D f 95° L Designation d Dmin L f E06M-SCLCL-2 0.375 0.500 6.00 0.250 E06M-SCLCR-2 0.375 0.500 6.00 0.250 E08M-SCLCL-2 0.500 0.625 6.00 0.312 E08M-SCLCR-2 0.500 0.625 6.00 0.312 E08R-SCLCL-3 0.500 0.625 8.00 0.312 E08R-SCLCR-3 0.500 0.625 8.00 0.312 E10R-SCLCL-3 0.625 0.780 8.00 0.438 E10R-SCLCR-3 0.625 0.780 8.00 0.438 E12S-SCLCL-3 0.750 0.985 10.00 0.500 E12S-SCLCR-3 0.750 0.985 10.00 0.500 E16T-SCLCR-3 1.000 1.280 12.00 0.625 For inserts, see pages 961 - 965, 990, 1008 & 1018. HARDWARE Accepts Insert Series Insert Screw Torx Driver E06M-SCLCL-2 CC_T21.5_ SM25-065-70 DS-T07F E06M-SCLCR-2 CC_T21.5_ SM25-065-70 DS-T07F E08M-SCLCL-2 CC_T21.5_ SM25-065-70 DS-T07F E08M-SCLCR-2 CC_T21.5_ SM25-065-70 DS-T07F E08R-SCLCL-3 CC_T32.5_ SO35080I DS-T15S E08R-SCLCR-3 CC_T32.5_ SO35080I DS-T15S E10R-SCLCL-3 CC_T32.5_ SO35080I DS-T15S E10R-SCLCR-3 CC_T32.5_ SO35080I DS-T15S E12S-SCLCL-3 CC_T32.5_ SO35080I DS-T15S E12S-SCLCR-3 CC_T32.5_ SO35080I DS-T15S E16T-SCLCR-3 CC_T32.5_ SO35080I DS-T15S 1125
